Role arrow : Two role arrows from different submodels

Two role arrows from different submodels

If a single role arrow between two models can be compared to nesting one submodel inside the other, using two role arrows to link submodels both to a third can be compared to creating an area where the two submodels overlap and are interleaved with each other. From the point-of-view of "Object A", "Object B" is nested within "Object A". From the point-of-view of "Object B", "Object A" is nested within "Object B".

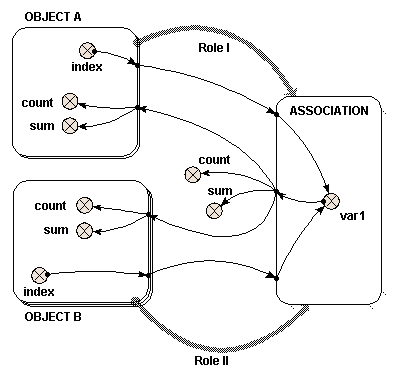

The following model diagram illustrates some of the features of this arrangement. Two multiple-instance submodels are created, "Object A" with two instances, and "Object B" with three. Both these objects are linked with role arrows to the third submodel "Association". One instance of "Association" is automatically created for each possible pair of instances of "Object A" and "Object B".

In this case, there are six instances of "Association", resulting from the two "Object A" and the three "Object B". Inside "Association" is a variable "var1". The two variables that influence "var1" have the full path names "../Object A/index" and "../Object B/index", and each has been set to the index of its own submodel with the equation "index(1)". The instance of "Object A" and the instance of "Object B" from which each "index" is taken is determined by the instance of "Association". Each instance of "Association" receives one of the six possible pairs of the "index" variables.

Local names for the two different full path names are created to avoid duplication, and to avoid using illegal characters such as spaces in the equation. In this case we have changed the local names to be "indexA" and "indexB" to avoid confusion, as described in the help page. In this simple example, the equation for "var1" is "indexA*indexB".

If this were represented by a table, it would look like this:



Object A - instance 1

indexA" = 1

Object A - instance 2

"indexA" = 2

Object B - instance 1

"indexB" = 1

Association - instance 1

"Var1" = 1

Association - instance 4

"Var1" = 2

Object B - instance 2

"indexB" = 2

Association - instance 2

"Var1" = 2

Association - instance 5

"Var1" = 4

Object B - instance 3

"indexB" = 3

Association - instance 3

"Var1" = 3

Association - instance 6

"Var1" = 6

The order of the instances in "Association" is determined by the order in which the role arrows are added. It is not usually important, but selecting "allow base instance lookup" in a role arrow's properties will ensure that "index(1)" in an equation in the association submodel refers to the indices of that arrow's base submodel. To understand how "var1" is represented, six influence arrows are taken from "var1" to different parts of the model.

  • Inside "Object A"


{var1}

count({var1})

sum({var1})

Instance 1

{1 2 3}

3 6

Instance 2

{2 4 6}

3 12
  • Inside "Object B"


{var1}

count({var1})

sum({var1})

Instance 1

{1 2}

2 3

Instance 2

{2 4}

2 6

Instance 3

{3 6}

2 9

To understand where both these sets of results for "{var1}" come from, look down (for "Object A") or across (for "Object B") the relevant lines of the full six instance "Association" table given above. The count() and sum() functions operate on the given {var1} to produce the results shown.

  • Outside both "Object A" and "Object B"


{var1}

count({var1})

sum({var1})



{1 2 3 2 4 6}

6 18

As with the use of a single role arrow, the condition symbol will permit the number of instances of "Association" to be less than the product of the number of instances of "Object A" and "Object B". The Boolean expression used in the condition symbol can involve influences from other model elements and can use the index(x) function to return the instance of both "Object A" and "Object B", using x=1 and x=2 respectively.
