Representing links between a number of countries, using an association submodel

Model : country_links1
Simile version : 3.1+
Date added : 2003-06-20
Keywords : Association submodel ;

Description

This model is an example of setting up an association between objects using a data file. The file consists of pairs of IDs, with each pair specifying one instnace of the association.

In this case, we specify which countries share a trading association (i.e. which country can export to another country). The data file which specifies the country trading pairs also contains information on the volume of trade between each country pair. This is totalled for both the exporting country and the importing country.

This model is not much use by itself. Rather, it is meant to show how to handle one aspect of a larger model, which would probably incorporate dynamic production and utilisation of goods within the individual countries.

Files

Model file Click on the icon to download the model file. (You will need Simile to examine and run the model. A free evaluation version is available from the products page.) Some browsers may attempt to display the model file, rather than open it in Simile; in this case, use the browser back button to return to this page, and use the context menu (invoked by right-clicking on the link) to save the target file to disk.

country_links1.sml

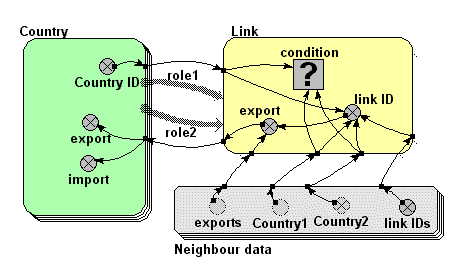

Diagram

Equations

View the model equations.
